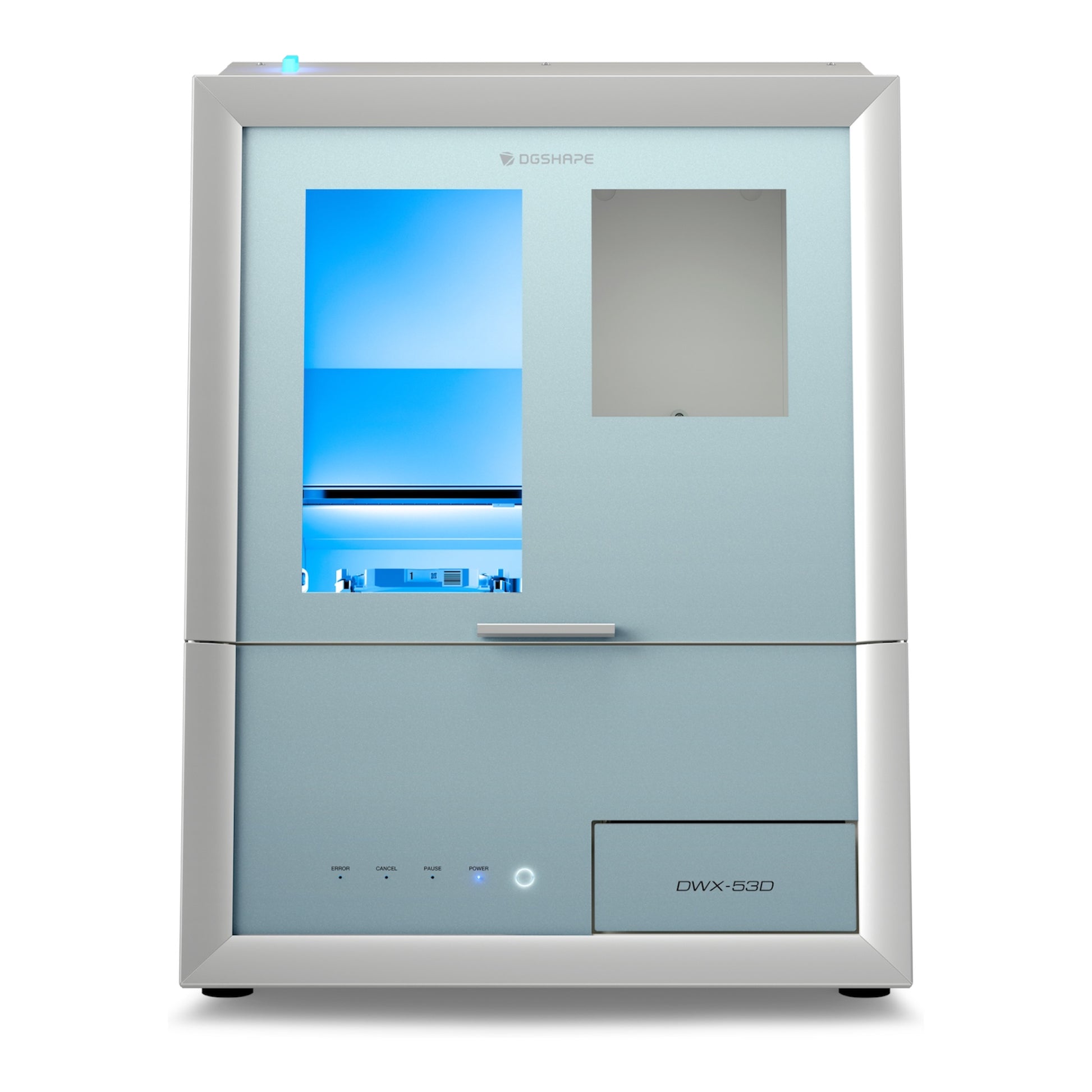

DGSHAPE DWX 53D Dry Dental Milling Machine

Name: DGSHAPE DWX 53D Dry Dental Milling Machine
Brand: DGSHAPE by Roland
Price: 31000.00 EUR
Availability: InStock

DGSHAPE DWX 53D Dry Dental Milling Machine

€31.000,00 EUR

Разпродажба Продадено

С включени данъци.

High End Dry Milling Machine: Where Strength Meets Precision
🇯🇵 Made in Japan

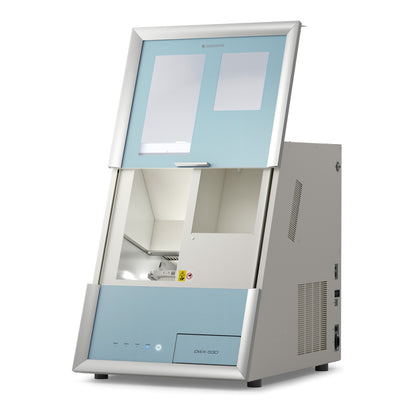

The Roland DGSHAPE DWX-53D is a high-precision 5-axis CAD/CAM dental milling machine designed for laboratories and clinics looking to expand their production capabilities. With automatic calibration, intuitive software integration, and a compact, lab-friendly design, the DWX-53D keeps your business at the forefront of digital dentistry.

Whether you are investing in your first milling unit or upgrading an existing CAD/CAM system, the DWX-53D delivers exceptional quality, speed, and reliability with minimal effort.

DWX 53D Specifications:

General:

Processing mode- Dry
Milling Technology- 5-Axis

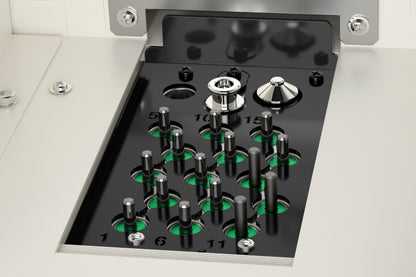

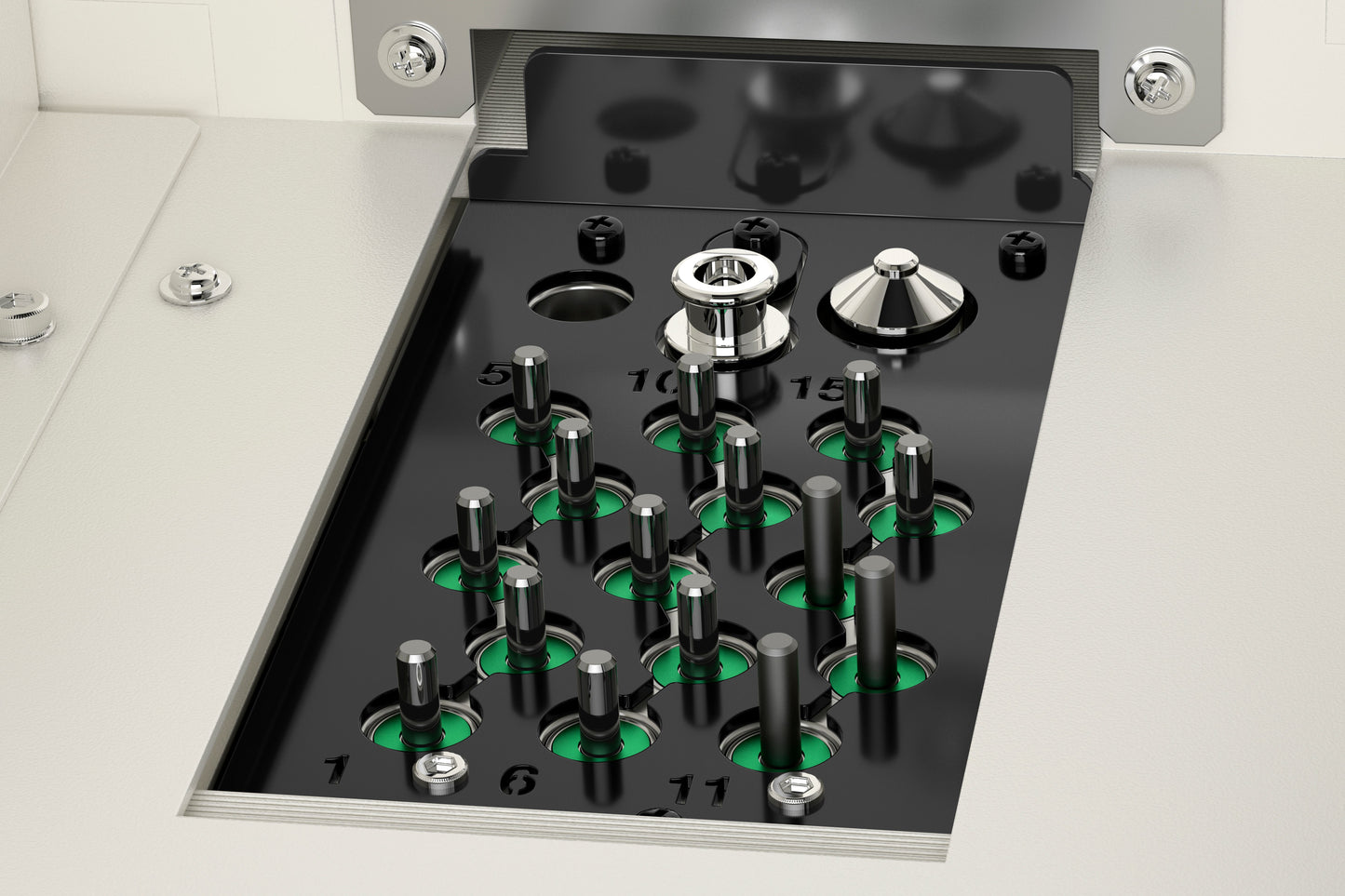

Tool Capacity: 15-slot Automatic Tool Changer (ATC)
Spindle Speed: Up to 30,000 rpm
Compatible Bur Shank Diameter: Ø 4 mm
Disc-Type (98.5 mm)

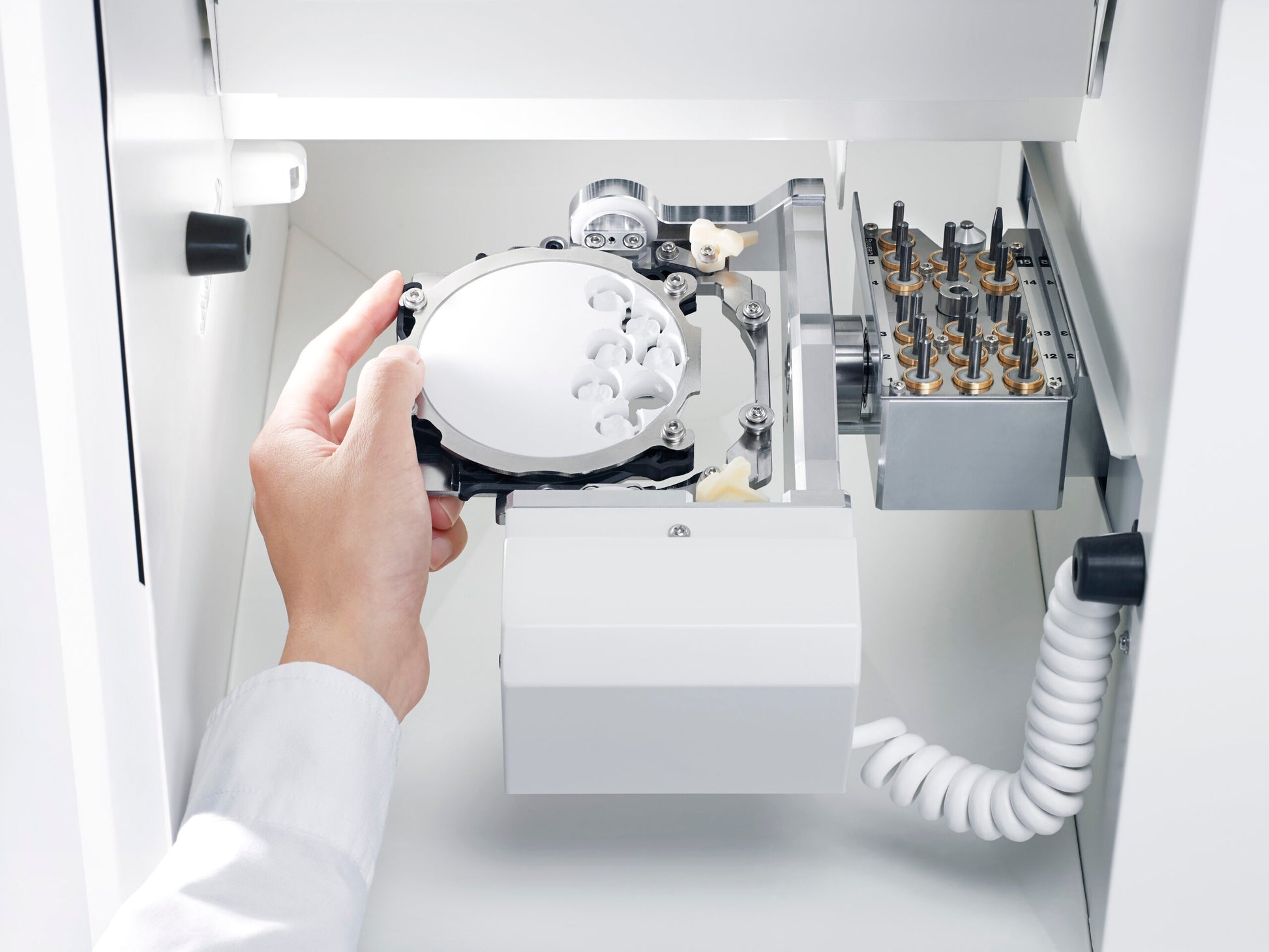

Standard Adapter: ZMA-53DC, Optional: ZMA2-53DC Open edge adapter
Intelligent Tool Control (ITC) – Automatic bur checking, replacement, and calibration

Axes / Motion System

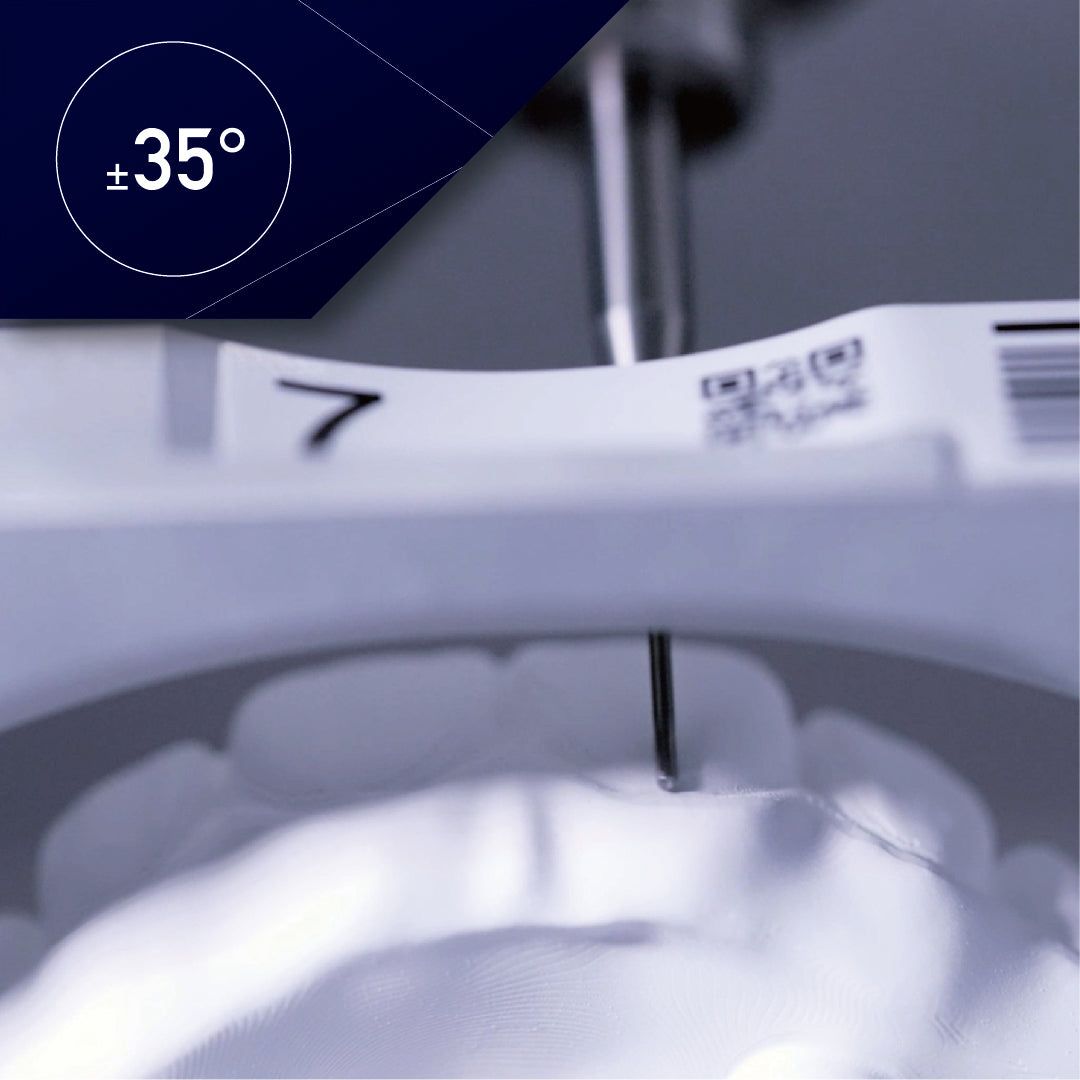

A: ±360° , B: ±35°
X, Y: 3,000 mm/min (118.11 in./min) max., Z: 2,700 mm/min (106.29 in./min) max

Power & Operating Requirements

Interface: USB
Power requirements: 100 to 240 VAC ± 10%, 50/60 Hz (overvoltage category: II, IEC 60664-1),1.8 A
Power Consumption: Approx. 170 W
Air Requirement: 0.4 MPa (compressed air)
Noise Level: ≤ 70 dB(A)

Dimensions & Weight

Size (W × D × H): 555 × 725 × 705 mm
Weight: ≈ 105 kg

Software Compatibility
Open CAM system compatibility
Supported CAM Platforms:
MillBox
HyperDent
WorkNC Dental

VPanel Operation Software Included (Machine Diagnostics, Monitoring, Calibration & Tool Management)

Built-In Features

Ionizer for static-free PMMA milling
Dust collection interface for clean dry milling
Automatic machine diagnostic and calibration

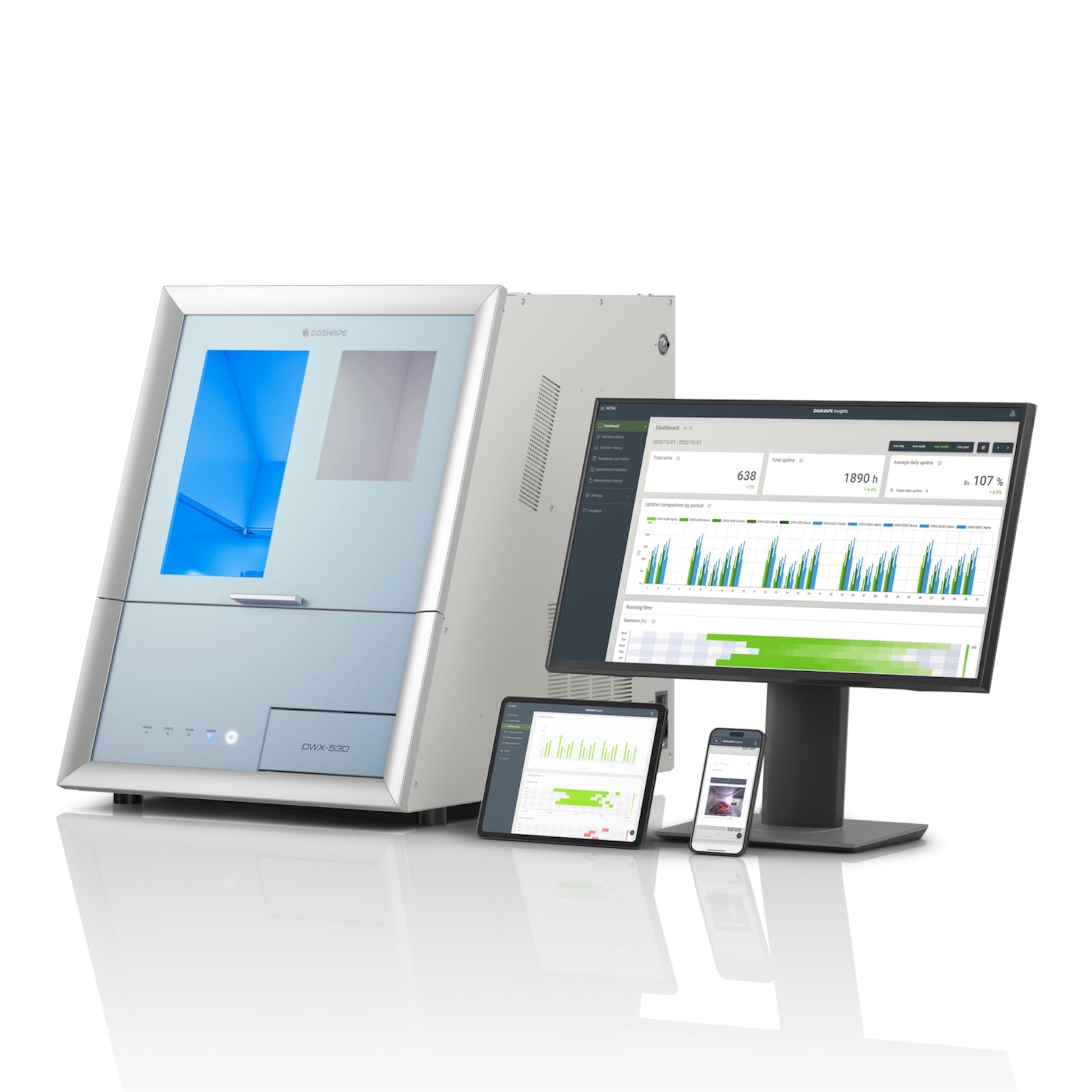

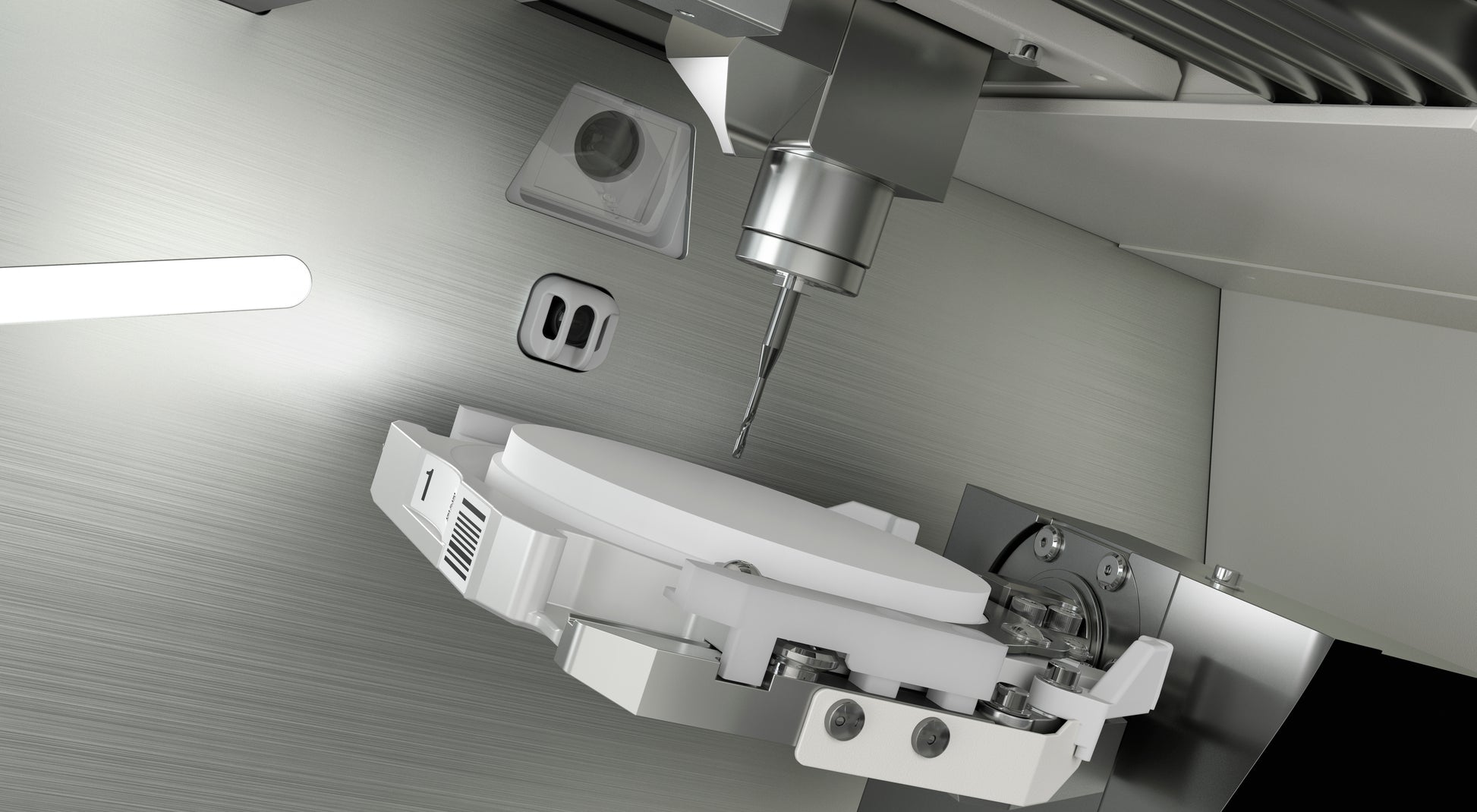

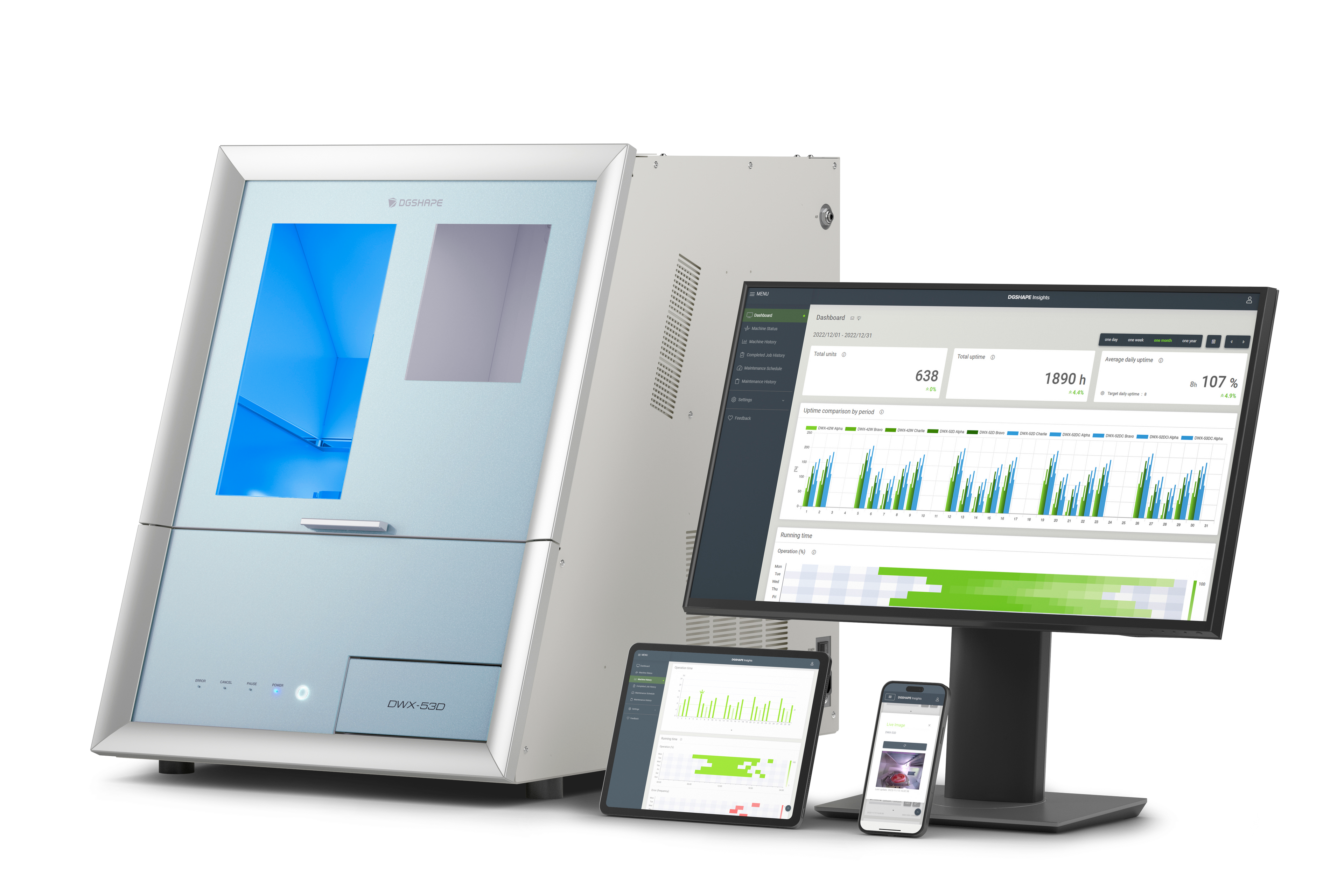

Built in webcam & remote monitoring
Built in thermohydrometer
Automatic Cleaning Process
Certifications-CE, Medical-Grade Manufacturing Standards
Full After-sale Service- technical support
Warranty-1 Year

Millable material:

Zirconia, Wax, PMMA, Composite resin, PEEK, Gypsum, Glass fiber reinforced resin, CoCr sinter metal, Polycarbonate

Millable Applications:

Crowns, Copings, Bridges, Inlays and onlays, Veneers, Abutments, Implant bars, Screw-retained crowns, Occlusal splints and bites, Surgical guides, Removable denture and more
